You’re reading a snack label, flip the packet over, and there they are — a row of small colored dots sitting quietly at the edge. Red, blue, yellow, black, sometimes green or orange.
What do they mean? Are they ingredient codes? Some kind of expiry signal? A factory batch marker?
The short answer: none of those. These dots are printer’s marks — and once you understand what they actually do, you’ll never look at packaging the same way.
The Real Name: Process Control Patches
Those colored dots have a proper industry name: process control patches — sometimes called printer’s color blocks or color registration marks.
They have nothing to do with the food, product, or consumer inside the packaging. They exist entirely for the printing press.
Every time a brand prints packaging — whether it’s a cereal box, a snack bag, or a cosmetic tube — they’re running it through an industrial printer at high speed, producing thousands or even hundreds of thousands of units. These dots give the press operators a way to check, in real time, whether the colors are printing correctly.
If a dot looks faded, offset, or the wrong shade, something is wrong with the press. The operator can catch it immediately, before thousands of misprinted packages are produced.
That’s their entire job. Simple, but critical.
Why Packaging Needs This Level of Color Control
To understand why these dots matter, you need to understand how packaging is actually printed.
Most packaging uses the CMYK color model — Cyan, Magenta, Yellow, and Black. These four inks are layered on top of each other at precise quantities to produce every color you see on the package. The bright red of a Coca-Cola can? That’s magenta and yellow at specific percentages. The deep blue of a Pepsi bottle? Cyan and black working together.
When printing at scale, even a tiny deviation — a slightly clogged nozzle, a drop in ink pressure, a shift in paper alignment — can throw the entire color balance off. A thousand boxes might come out slightly orange instead of red. The logo might look washed out. The brand colors might not match what was approved.
For a brand, this is a serious problem. Consumers recognize products by color. Studies consistently show that color is the first thing shoppers notice on a shelf. A color inconsistency doesn’t just look bad — it can shake brand recognition and trust.
The colored dots are the safety net that prevents this from happening.

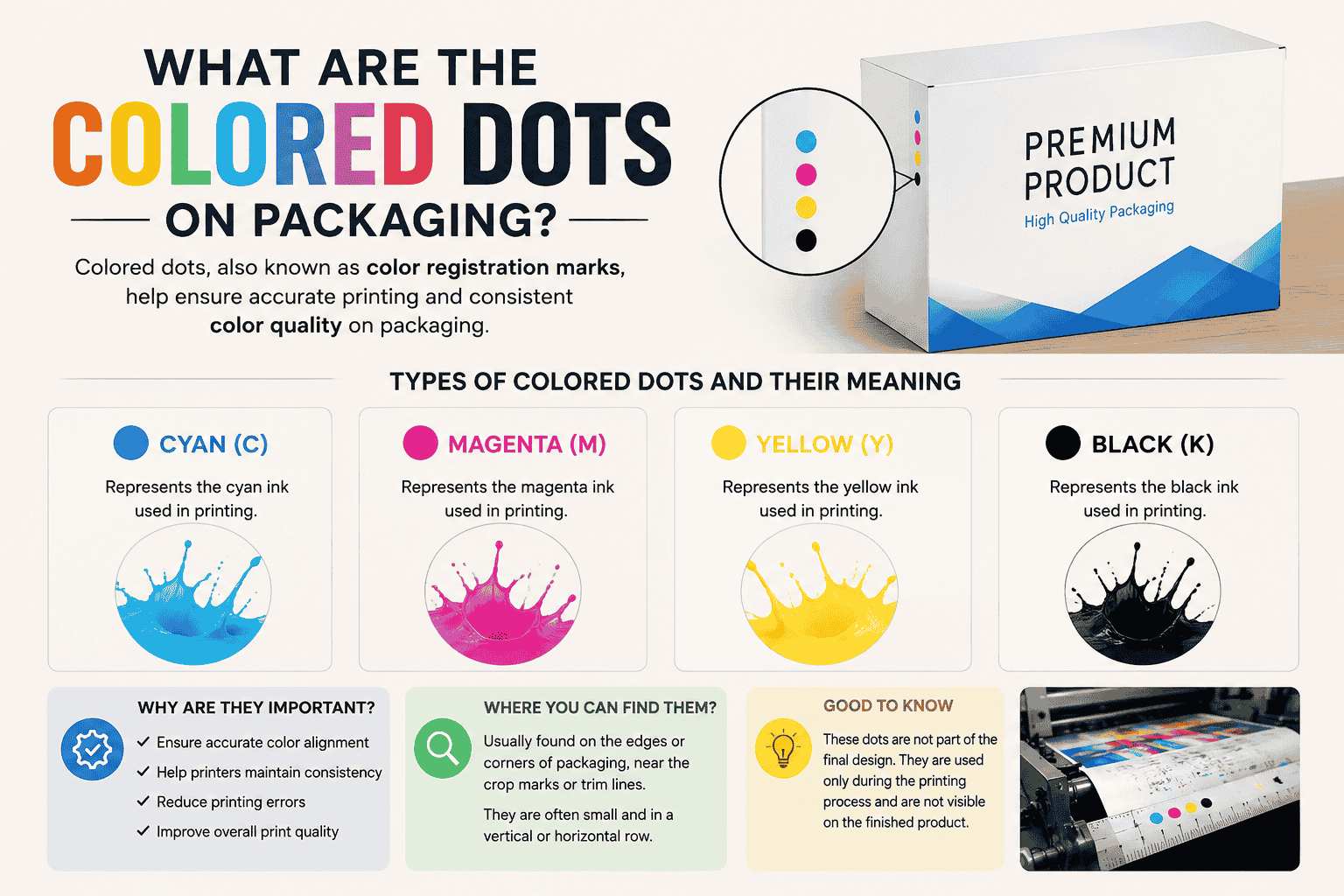

What Each Color Means in the Dots
The dots you see directly represent the inks in the printing process:
Cyan (appears blue-ish) — Represents the cyan ink plate. If this dot looks pale or slightly off-position, the cyan layer needs adjustment.
Magenta (appears red-ish) — Represents the magenta ink plate, responsible for warm tones, reds, and pinks in the design.
Yellow — Represents the yellow ink plate. Yellow is often the hardest to verify visually, which is why its control patch is especially important.
Black — Represents the black (Key) ink plate, used for text, outlines, and depth.
When you see all four together, you’re essentially looking at a miniature quality checklist for the press operator — one dot per ink, all in a row.
Some premium packaging adds extra dots beyond CMYK. A brand using a custom Pantone gold or a neon green ink will add control patches for those as well. The more inks used, the more dots appear.
Other Marks You Might Spot Near the Dots
The colored circles rarely appear alone. Around them, you might also notice:
Registration marks — These look like a crosshair or a target symbol. They help the printer align multiple color layers perfectly on top of each other. If the cyan layer is 1mm off from the magenta layer, the entire image looks blurry or ghosted. The registration mark makes this misalignment instantly visible.
Barcodes or scanner blocks — Sometimes there are additional test barcodes placed near the edge of the packaging to verify scanner readability before full production.
Color bars — On some packaging, especially flexible packaging like chip bags, you’ll see a full strip of colors rather than individual dots. This is simply a wider version of the same quality control concept.
All of these marks serve one purpose: making sure what comes off the press matches what was designed on a computer screen.
Do the Dots Mean Different Things on Different Products?
This is where a lot of confusion comes from.
In food packaging, the dots are purely printer marks. They have no connection to ingredients, allergens, expiry, or nutrition. When people post online claiming the dots indicate “healthy vs. unhealthy” or “natural vs. artificial,” that is a myth with no basis in fact.
However — and this is worth noting — some countries use separate colored symbols (not the CMYK dots) for food classification. In India, for example, a green dot indicates vegetarian and a brown or maroon dot indicates non-vegetarian. These are regulatory symbols, not printer marks, and they appear prominently on the front or back of the package, not hidden along the trim edge.
If you’re looking at a row of small, edge-placed colored circles, those are printer marks. If you’re looking at a single prominent colored dot in a square, that’s likely a regulatory or dietary label.
On cans, colored marks sometimes serve a slightly different function — tracking production lines, shift codes, or machine IDs in the factory. These still aren’t consumer-facing information, but their purpose is slightly different from the CMYK printing patches on printed packaging.
Why Are They Placed at the Edges?
Have you noticed the dots are almost always near the edge or bottom of the packaging, often in an area that folds behind the product on a store shelf?
This placement is intentional. The dots need to be visible to press operators and quality control systems during production, but they shouldn’t distract from the design that consumers see.
In many packaging formats, the dots end up in the “bleed area” — a margin that gets folded, glued, or trimmed during the finishing process. In others, they remain visible but are tucked into the least prominent area of the design.
What Happens When There Are No Dots?
If you pick up a package and don’t see any colored dots, it doesn’t mean anything is wrong with the product.
It could mean:
- The printer used a design where control patches were placed in a non-visible area or trimmed off after printing
- The packaging used a simpler printing method that doesn’t require visible patches
- The dots were incorporated into a decorative part of the design rather than placed separately
The absence of dots says nothing about the product’s quality, safety, or freshness.
A Quick Myth-Busting Summary
| What people think the dots mean | What they actually mean |
| Ingredient codes | Printer ink reference marks |
| Expiry or freshness indicator | Nothing about the product |
| Allergen or dietary markers | No connection to food content |
| Factory batch numbers | Press color quality control |
| Secret brand messages | Technical printing tools |
Why This Matters If You’re Ordering Custom Packaging
If you’re a business owner or brand manager ordering custom packaging, this isn’t just trivia — it’s useful knowledge.
When you review a print proof or a press sheet, those control patches tell you whether your brand colors are being printed accurately. A good packaging supplier will show you these marks during approval and explain what to look for. If the control patches look off, the finished product will look off.
Understanding that these marks exist, what they represent, and where they should appear helps you have smarter conversations with your printer — and catch problems before they become expensive mistakes.
The Bottom Line
The colored dots on packaging are one of those behind-the-scenes details that most people never think about — but that play a real role in making sure the products you buy look the way brands intend.
They’re not codes. They’re not consumer labels. They’re not hidden messages.
They’re the printing industry’s way of making sure color accuracy holds at scale, across thousands of packages, every single time.
Next time you notice them, you’ll know exactly what you’re looking at.
